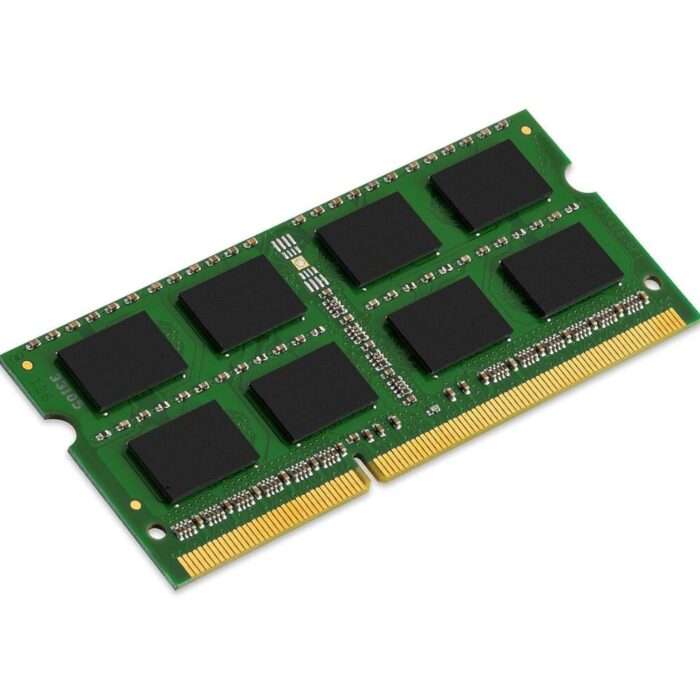

Kingston Technology 8GB 1600MHz DDR3L (PC3-12800) 1.35V Non-ECC CL11 SODIMM Intel Laptop Memory KVR16LS11/8

Value RAM’s 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. This Supports Only Laptop which supports Low Voltage Memory. These Laptop Memory are specifically designed for 4th Generation Laptops and also will work also on 3rd Generation Laptops.

About this item

• Burst Length – 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Internal(self) calibration – Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• Average Refresh Period – 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Programmable Additive Latency – 0, CL – 2, or CL – 1 clock
• PCB – Height 1.18” (30mm), double sided component
• Programmable CAS Latency – 11, 10, 9, 8, 7, 6, 5
• JEDEC standard 1.35V and 1.5V Power Supply
• Bi-directional Differential Data Strobe
• On Die Termination using ODT pin
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• VDDQ = 1.35V and 1.5V
• Asynchronous Reset
• 8-bit pre-fetch
