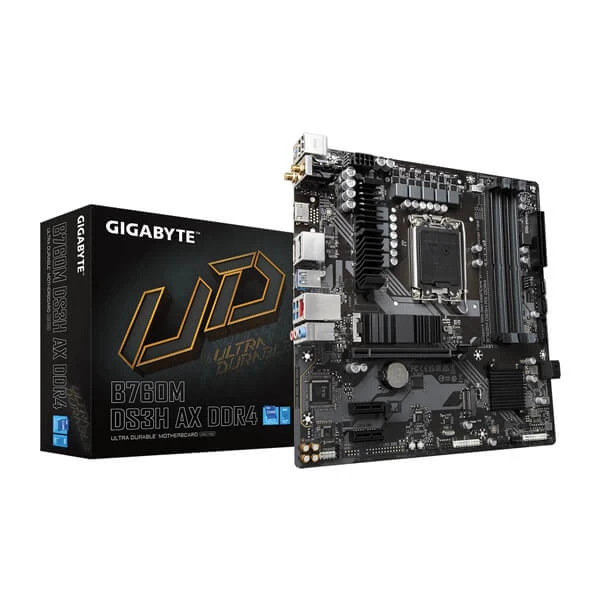

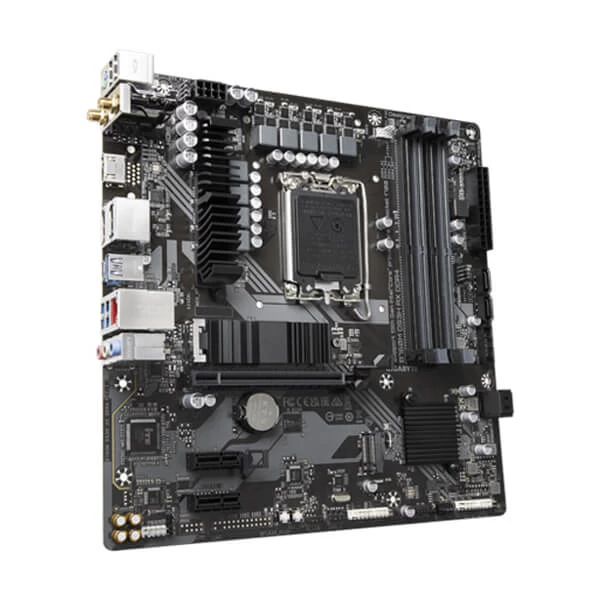

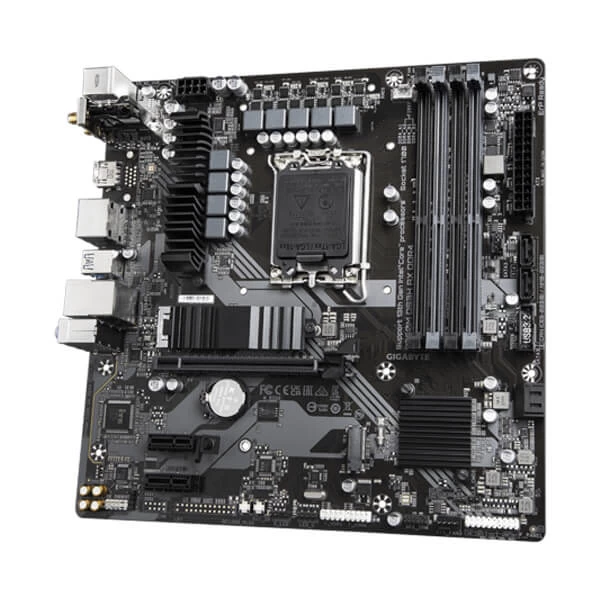

Gigabyte B760M DS3H AX DDR4 (Wi-Fi) Motherboard – Sealed
Original price was: ₹13,900.00.₹10,900.00Current price is: ₹10,900.00.
Sealed Packed, 1 Year warranty with GST invoice bill
- COD charges extra ₹90/-
- COD available above ₹499/-
- For orders over ₹10,000, COD available with min ₹1000/- partial prepayment. Order confirmed and shipped thereafter.
After receiving the COD orders
- Product would be shipped after order confirmation on your WhatsApp.
- Estimated Delivery 2 to 4 days for metro cities
- Estimated Delivery 5 to 7 days for the rest of India. Read More
- Free Shipping available only on prepaid orders
- Product would be shipped within 24 hours.
- Estimated Delivery 2 to 3 days for metro cities
- Estimated Delivery 3 to 5 days for the rest of India. Read More
Out of stock
About this item
- Intel® Socket LGA 1700 – Support 13th and 12th Gen Series Processors
- Unparalleled Performance – Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4 – 4*DIMMs XMP Memory Module Support
- Next Generation Storage – 2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard – To Ensure M.2 SSD Performance
- EZ-Latch – PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks – 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity – Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6 – Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus – Update BIOS Without Installing the CPU, Memory and Graphics Card
6+2+1 Phases Hybrid Digital VRM Design – 6+2+1 Phases Low RDS(on) MOSFETs, Premium Choke and Capacitors to improve transient response and minimize oscillation
GIGABYTE Ultra-Efficient M.2 Thermal Guard – With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Technical Details
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
|---|---|
| Chipset | Intel® B760 Express Chipset |
| Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Expansion Slots | CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

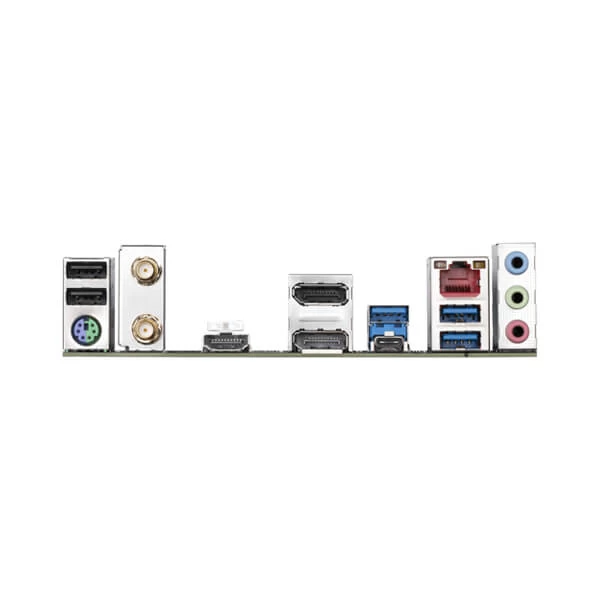

| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
